Panasonic Revolving Door- 2-wing safety revolving door Automatic Door |
Beijing, Shanghai, Guangzhou, Shenzhen, Hangzhou, Suzhou, Nanjing, Chengdu, Chongqing, Wuhan, Xi'an, Tianjin, Changsha, Foshan, Xiamen, Fuzhou, Zhengzhou, Dongguan, Qingdao, Jinan, Shenyang, Kunming, Ningbo, Wuxi, Changzhou, Hefei, Dalian Price |
Panasonic Revolving Door- 2-wing safety revolving door Automatic Door |
Panasonic Revolving Door- 2-wing safety revolving door Automatic DoorInstallation manual, video, repair and maintenance service center prices |
| |
|
|
|
Panasonic Revolving Door- Panasonic 2-wing safety revolving door Automatic doors ¨C Shanghai Zitin Designinstallation, repair & maintenance Service Consultation Tel: +86 21 68568185
Panasonic has **ed the world's safest revolving door, further improving the drawback of revolving doors pinching people, and it has been successfully applied at customer sites in Beijing, Shanghai, Nanjing and elsewhere.

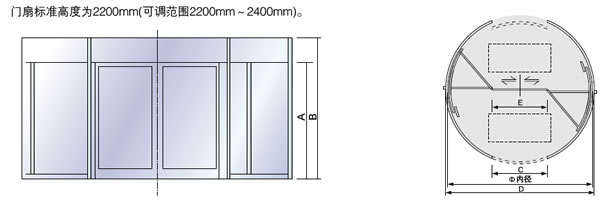

Basic Parameters www.panasonic-autodoor.com
|
Part No. |
¦Õ |
A |
B |
C |
D |
E |
|
PS-A3600-2E 2 |
3600 |
2** |
2600 |
1610 |
3766 |
1600 |
|
PS-A4**-2E 2 |
4** |
2** |
2600 |
1910 |
4366 |
1900 |
|
PS-A4800-2E 2 |
4800 |
2** |
2600 |
2210 |
4966 |
2** |
Notes:
1.** inner diameter of the two-wing automatic door: 3600mm¡«4800mm:
2.A swing sensor door added in the middle of the door body:
3.The standard transom height is 300mm/400mm:Door Leaf ** Height For2**mm(adjustable range 2**mm¡«2400mm)¡£
Basic Specifications
|
Load capacity inside display box |
¡Ü20kg |
Power voltage |
Single-phase 220V¡À10% **Hz |
|
Withstand voltage |
1**V/1 min |
Total power |
14**W |
|
Load capacity of rotating wheels |
<300kg |
Noise |
¡Ü60dB |
|
Rotation speed |
0.45¡«0.75m/s |
Lighting power |
**Wmax,each12V,35W |
|
Stand-by speed |
0.3¡«0.35m/s |
Revolving door power |
800Wmax |
|
Temperature indication |
-30¡æ¡«40¡æ |
Swing door power |
1**Wmax |
|
Wind resistance class |
8Level |
UPSPower supply duration, Optional accessory |
3 min |
Four ** advantages of the Panasonic safety revolving door
|
Advanced door-leaf rebound-on-collision function. |
|
|
When the added revolving door wing of the Panasonic safety revolving door is struck by an external impact energy of 10J, the door wing rebounds, fully ensuring that people or objects are not harmed in an accident. |
|
|
Complete sensor configuration¡ªup to 32set |
|
|
Additional sensors have been added on the original basis, giving wider coverage, greater reliability and no blind spots.
|
|
Shorter collision braking distance |
|
|
The recommended braking distance in the industry standard of China's Ministry of Construction is **mm-2**mm, but the Panasonic safety revolving door achieves 180 mm, greatly improving the safety factor. |
|
|
Emergency functions |
|
|
1To ensure the safe and convenient passage of disabled, elderly and young pedestrians, a single-touch low-speed rotation switch is provided; while the door wings are rotating, this switch can shift the door from normal rotation to low-speed rotation.
2An emergency stop switch is provided: when the safety detection sensors detect any abnormal condition, the door can be stopped via the emergency stop switch.
3After the emergency stop switch is released, the door resumes its pre-stop rotation speed after 2 seconds and rotates 1 time.
|
