productmodel, Surface-mounted Style Door Closer CM**0H, CM**0HY, CM10**F, CM1**F, CM1**FS, CM12**FT
, , , , , , , , , , , , , , , , , Concealed door closer CY9**, CY12**T
Ultra-quiet
The door closer slide rail arm uses imported shrapnel, creating the world's most advanced silent hold-open device.
Extra-long service life
The door closer uses imported die-cast aluminum alloy, extremely wear-resistant, safe and reliable. The spring material is imported and processed, remaining fatigue-free and deformation-free for a million cycles.
Available in surface-mounted or concealed styles, compact structure, attractive and simple design, non-handed for left- or right-hand opening, meeting the needs of different sites.
The body is made of high-** die-cast aluminum alloy, protected by two layers of glossy paint, precisely oil-sealed, with an internal pressure relief valve to prevent oil leakage, guaranteeing 1 million opening cycles.
Light to open, stable closing speed, ** humanized and safer passage.
Apart from the standard silver finish, other colors can be custom ordered if required.
I. Surface-mounted Door Closers
Panasonic Door Closer CM-**0H, HY
Main dimensions (mm): 220x59x42
Max opening angle (degrees): 180
Product description: C-series surface-mounted type, max. door width **0mm, max. load 70KG; standard arm, with arm-end power adjustment plate, displacement power adjustment, explosion-proof device, constant-speed stabilizer, shock pressure relief valve, shared by left/right doors; white/silver, curved, non hold-open.
Panasonic Door Closer CM-10**F
Main dimensions (mm): 207x55x40
Max. opening angle (degrees): 120
Product description: C-series surface-mounted type, max. door width 10**mm, max. load 75KG, slide arm, anti-explosion device, silver, square, hold-open.
Panasonic Door Closer CM-1**F, FS
Main dimensions (mm): 207x55x40
Max opening angle (degrees): 180
Product description: C-series surface-mounted type, max. door width 1**mm, max. load 80KG, standard arm, with arm-end power adjustment plate, displacement power adjustment, explosion-proof device, shared by left/right doors, silver, square, non hold-open / hold-open.
Panasonic Door Closer CM-12**FT
Body dimensions, mm, 236×39×60
Max opening angle (degrees): 180
Product description: C-series surface-mounted type, max. door width 12**mm, max. load **KG, standard arm, with arm-end power adjustment plate, displacement power adjustment, anti-explosion device, shared by left/right doors, silver, square, non hold-open / Can Positioning.
II. Concealed Door Closers
Panasonic Door Closer CY-9**
Body dimensions (mm): 230x57x32
Max. opening angle (degrees): 120
Product description: C-series concealed type, max. door width 9**mm, load 65KG, with shock pressure relief valve, explosion-proof device, silver finish, slide rail arm, hold-open.
Panasonic Door Closer CY-12**
Body dimensions (mm): 239x61x37
Max. opening angle (degrees): 120
Product description: C-series concealed type, max. door width 12**mm, load 60-120KG adjustable force, adjustable force device (max. door width **0mm-12**mm), with cushioning function, shock pressure relief valve, explosion-proof device, shared by left/right doors, silver finish, slide rail arm, hold-open.
|
Configuration |
Rack rotation |
Arm-end force adjustment plate |
Max. opening angle |
Spring force adjuster |
Travel force adjustment |
Closing speed adjuster |
Latching speed adjuster |
CM-**0H | √ | √ | 180° | - | √ | √ | √ |
CM-**0HY | √ | √ | 180° | - | √ | √ | √ |
CM-10**F | √ | - | 180° | - | - | √ | √ |
CM-12**FT | √ | √ | 180° | √ | - | √ | √ |
CM-1**F | √ | √ | 180° | - | √ | √ | √ |
CM-1**FS | √ | √ | 180° | - | √ | √ | √ |
CY-9** | √ | - | 180° | - | - | √ | √ |
CY12**T | √ | - | 180° | √ | - | √ | √ |
|
Configuration |
Explosion-proof device |
Hold-open near rail arm |
** stop arm |
Adjustable force |
Suitable for left- and right-hand doors |
Installation |
Body color |
** |
Reverse-mounted |
Parallel |
Grooved |
CM-**0H | √ | - | - | - | √ | √ | √ | - | - | Silver |
CM-**0HY | √ | - | - | - | √ | √ | √ | - | - | Silver |
CM-10**F | √ | √ | - | - | √ | - | - | √ | - | Silver |
CM-12**FT | √ | - | - | √ | √ | √ | √ | - | - | Silver |
CM-1**F | √ | - | - | - | √ | √ | √ | - | - | Silver |
CM-1**FS | √ | - | √ | - | √ | √ | √ | - | - | Silver |
CY-9** | √ | √ | - | - | √ | - | - | - | √ | - |
CY12**T | √ | √ | - | √ | √ | - | - | - | √ | - |

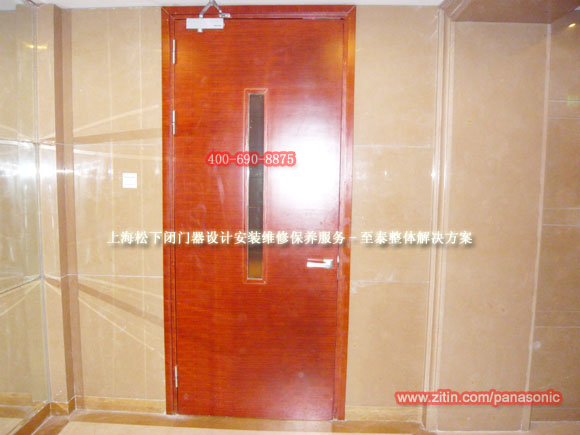

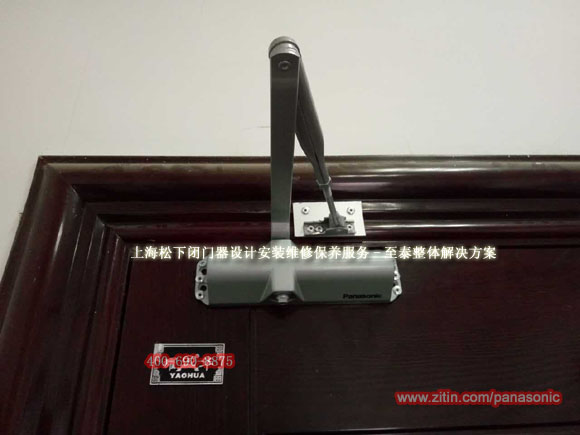

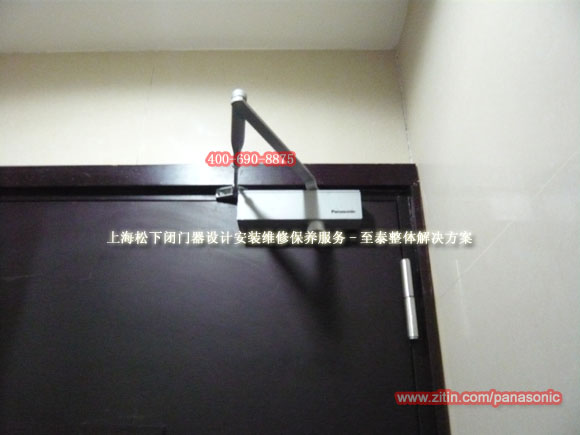

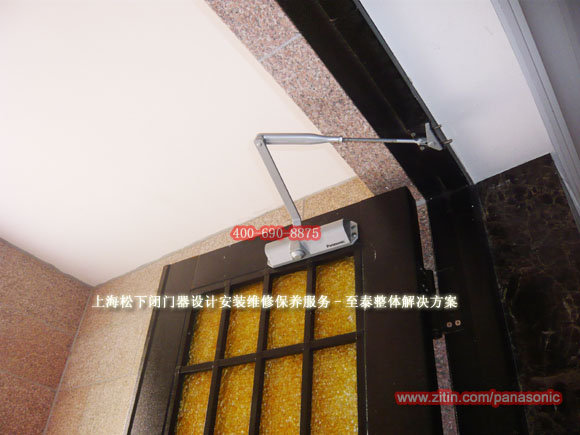

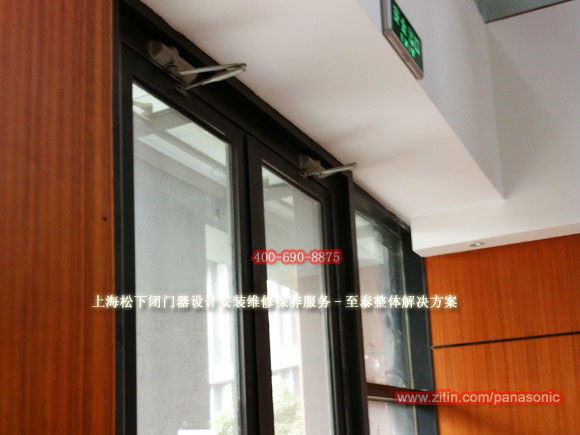

Related cases:
 >
