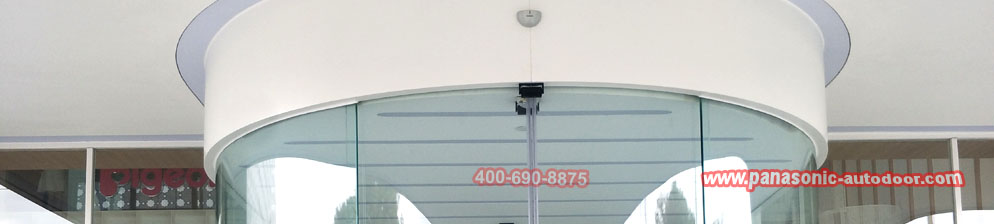

Panasonic Arc automatic door


♦ Free curvature
♦ Large diameter
♦ Low noise

♦ Energy saving and beautiful


Product features

Free curvature
A variety of arc types can be designed according to the site conditions.

Large diameter
The radius range can be 1.5-2.5 m;

Low noise

The overall structure is improved to further reduce the noise;

Energy saving and beautiful

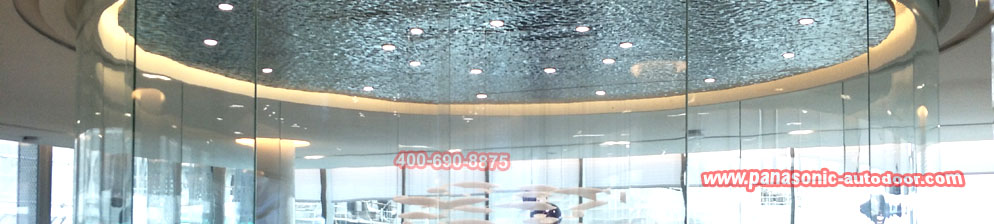

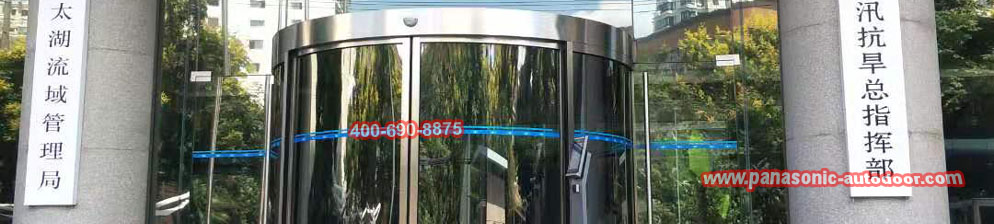

The two arc doors are combined into a full circle to form an "air lock", which effectively reduces the energy consumption of the air conditioner;

Product parameters



Engine unit number

NCY21015/NCY21020/NCY21025

Door leaf form

Double open

Door leaf weight

100kgX2

Sliding door single leaf width

600〜1, 754 mm

Motor

DC24V 50W brushless motor

Opening speed※

15〜38cm/s (adjustable)

Closing speed※

10〜37cm/s (adjustable)

Door opening time

0〜9 s (adjustable)

Half-open option

The full open stroke is adjustable between 20~90%     A half-open connector NKA8103013 is required

Manual opening/closing force

Below 70N

Collision detection function

Reversing operation or reversing stop can be performed under collision detection (can be set by remote control)

Supply voltage

AC200〜250V 50/60HZ

Input current (AC220V)

Standby

0. 09A (not including sensor)

Operation

1.81A (not including sensor)

Ambient temperature

-20〜+50℃

Basic action

Detection switch → door leaf opened → braking → slow down → stop (in opened state) → door leaf closed → braking → slow down → stop (in closed state)

※The average speed at which 60 cm is moved from the fully closed or fully open position.
