Medical door series



​

Panasonic Medical door series

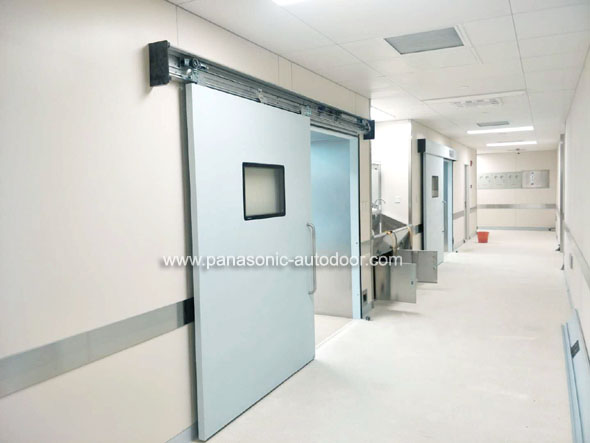

Type 250 medical airtight automatic door

​

It is suitable for operating rooms, clinics and other places with high cleanliness and tightness, such as level 100 operating room
♦    It is equipped with the original imported motor, featuring stable operation and low noise.
♦    Safety sensor, anti-pinch function, rebound once blocked
♦    Have good sealing performance, prevent cross-infection and maximize cleanliness

♦    The door is designed with an elegant and beautiful appearance, and various forms are available to meet the individual needs of different customers.


Product features

◇Standard double-layer glass
◇The door panel is sprayed with steel plate, which is rust-proof, moisture-proof and easy to clean.
◇Energy-saving and heat insulation, resistant to pressure and impact
◇High quality sinking door body sealing method ensures air tightness and conforms to GB/T 7106-2008
◇Uniform speed opening, end buffering
◇It can be equipped with foot sensor, doorbell switch, access control system, etc.


Product parameters

Opening method

Horizontal single sliding (left/right)

Door leaf steel plate thickness

1mm

Door weight (max)

150ks

Door leaf thickness

45-48mm

Door frame aluminum alloy thickness

2mm

Door size (max)

1830mm*2440mm

Opening speed

100-500mm/sec (adjustable)

Closing speed

100-400mm/sec (adjustable)

Controller (standard)

Foot sensor and doorbell switch

Optional window

Double tempered glass (size can be customized)

Installation method

Surface

Internal fill

High strength aluminum honeycomb

Ambient temperature

-20-+50℃

Power supply requirements

AC200-250V 50/60HZ
