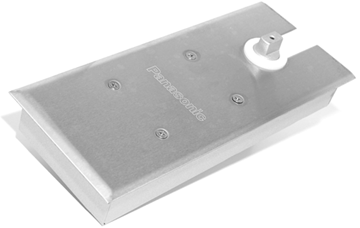

Panasonic floor spring S-100
Product Features:
High-precision processing ensures that the center reset remains 0 degree deviation after long-term use, which greatly saves indoor air conditioning energy;
The thickness of the ultra-thin body is only 40.5mm, which is very suitable for floor installation;
Thickened stainless steel cover plate The thickness of the stainless steel cover plate is 1.5mm to prevent collapse and deformation;
Thickened connecting rod and spring;
Fully automatic CNC machine tool processing ensures product processing accuracy to ensure no oil leakage and low wear;
Energy saving
Panasonic floor spring S-100 and matching door clamp
Variety model
Name |
model |
Maximum door width |
weight capacity |
Appearance size (mm) |
Remarks |
Floor spring |
S-100 |
1100mm |
100KG |
289×122×40.5 |
90-degree stop positioning, dual-speed adjustable, maximum opening angle of 130 degrees, silver body and shell |
Top/bottom/top clamp |
JFL-020S/010S/030S |
|
|
|
Brushed stainless steel square |
Song/lock clip |
JFL-040S/JSL-010S |
|
|
|
Brushed stainless steel square |
Sales start date
September 10, 2008
Remarks
As the S series new floor spring adopts European-style cam head, it must be installed with the matching S series new door clamp product. The new product cannot be used with the original A and E series floor springs and door clamps.
|
